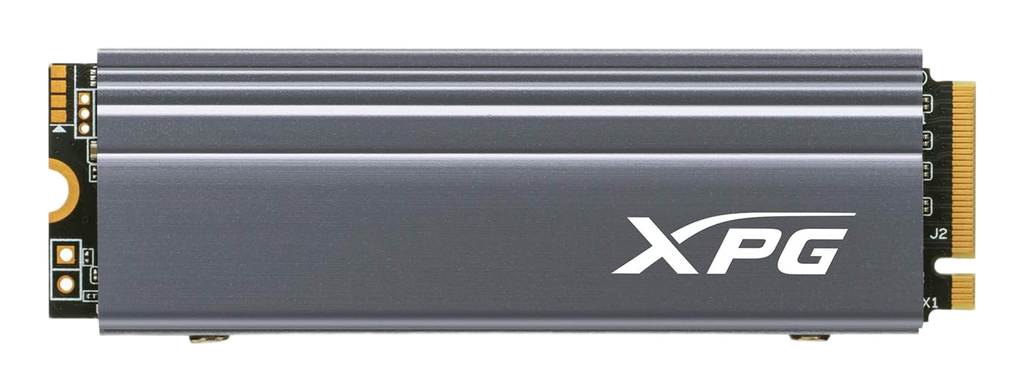

ADATA GAMMIX S70 1000GB

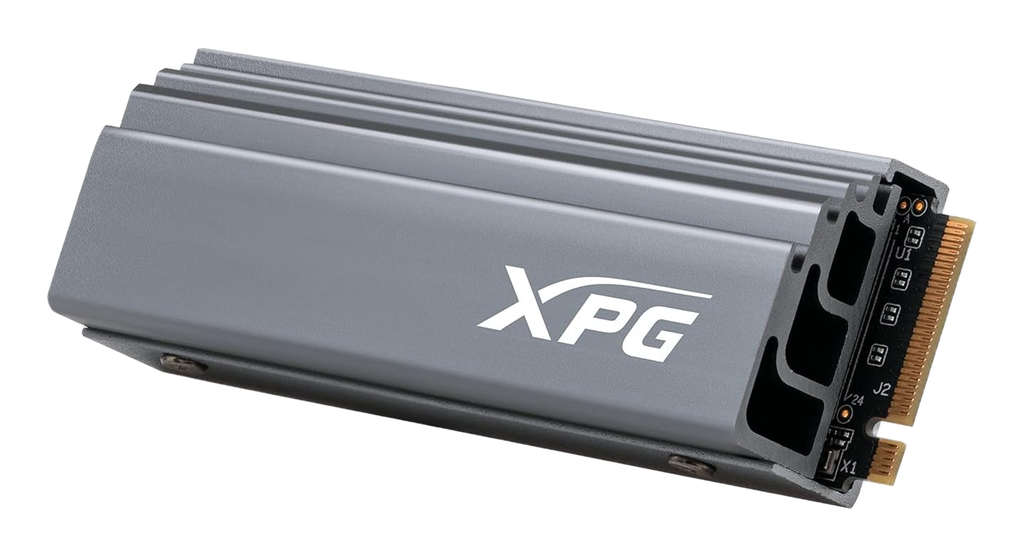

The ADATA XPG GAMMIX S70 uses the Innogrit IG5236 "Rainier" 8-channel NVMe 1.4 controller (12nm FinFET), paired with DDR4 DRAM buffering and typically Micron 3D TLC NAND. The drive is engineered to saturate PCIe 4.0 x4 bandwidth with an emphasis on high queue-depth performance and sustained sequential throughput. The original S70 features a terraced aluminum heatsink with a high Z-height that makes it incompatible with most laptops and the PlayStation 5 expansion slot, a limitation addressed by the later Blade revision. Early IG5236 firmware had stability issues that were largely mitigated by subsequent updates.

Key Specifications

• Interface: PCIe Gen4 x4 (NVMe 1.4)
• Sequential Read: Up to 7,400 MB/s
• Sequential Write: Up to 5,500 MB/s
• Controller: Innogrit IG5236
• NAND Type: 3D TLC
• DRAM Cache: Yes (DDR4)
• Endurance: 740 TBW (Total Bytes Written)
• Form Factor: M.2 2280 with non-removable, high-profile heatsink

Hardware Alternatives

• Patriot Viper VP4300: shares the IG5236 controller + DRAM architecture and offers nearly identical underlying performance characteristics
• HP FX900 Pro: part of the IG5236 ecosystem with similar performance characteristics
• Plextor M10P: another IG5236-based option with comparable architecture
• Corsair MP600 Pro: example of a Phison E18 ecosystem competitor
• Sabrent Rocket 4 Plus: Phison E18 ecosystem competitor with comparable real-world random I/O performance
• Seagate FireCuda 530 1000GB: direct competitor from the Phison E18 ecosystem
• Samsung 980 PRO 1000GB: proprietary competitor in the same performance tier
• WD Black SN850: proprietary competitor targeting similar workload segments
• ADATA GAMMIX S70 BLADE 1000GB: lower-profile Blade revision that addresses the original S70's high Z-height and PS5 incompatibility
