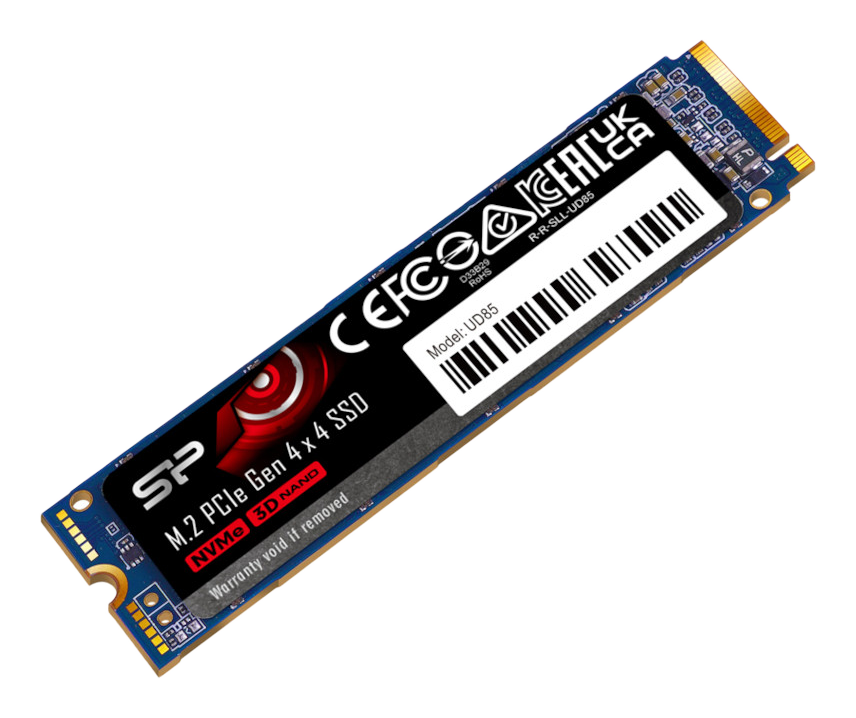

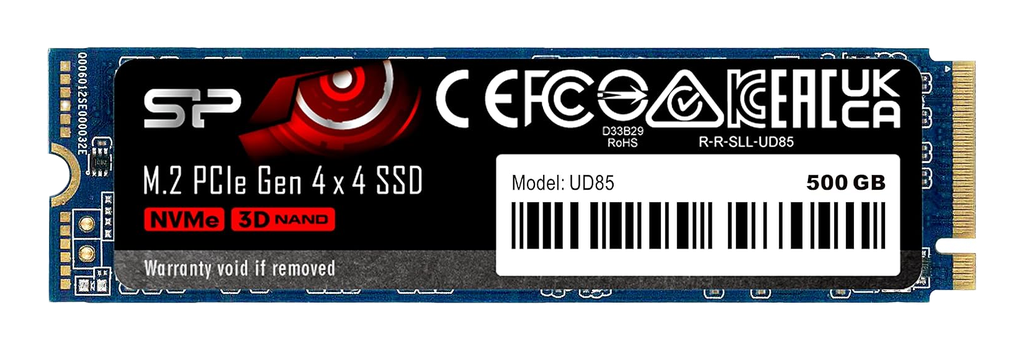

Silicon Power UD85 500GB

SSD Description

The Silicon Power UD85 is an entry-level NVMe drive that uses the PCIe 4.0 interface primarily for platform compatibility rather than to saturate bandwidth. It employs a DRAM-less architecture with Host Memory Buffer (HMB) support, and the reference design typically pairs a Phison PS5019-E19T controller with high-density 3D NAND, optimized for low power consumption and thermal efficiency rather than sustained high-performance workloads. Its sequential throughput (3,600 MB/s read, 2,400 MB/s write) effectively mirrors the ceiling of the previous PCIe 3.0 generation. This SKU is subject to unannounced component variability (BOM swaps) and uses a single-sided PCB layout compatible with slim ultrabooks and embedded systems. The drive also supports standard AES 256-bit encryption.

Key Specifications

• Interface: PCIe 4.0 x4 (NVMe 1.4)
• Sequential Read/Write: 3,600 MB/s / 2,400 MB/s
• Controller: Phison PS5019-E19T (Reference)
• NAND Flash: 3D NAND (Variable)
• DRAM Cache: None (HMB Support)
• Encryption: Standard AES 256-bit support
• Physical: Single-sided PCB (compatible with slim ultrabooks and embedded systems)

Hardware Alternatives

• Kingston NV2 500GB: The most direct market alternative. Both drives operate in the entry-level PCIe 4.0 tier and are known for variable internal hardware configurations depending on supply chain availability.
• Crucial P3 Plus 500GB: Shares a similar performance profile and target demographic, utilizing QLC NAND to provide entry-level Gen 4 speeds that offer a slight uplift over SATA and Gen 3 predecessors.
• Western Digital WD_BLACK SN770 500GB: A higher-performing relative in the DRAM-less category. While physically similar, the SN770 utilizes a proprietary controller that achieves significantly higher random I/O operations compared to the UD85's reference design.
