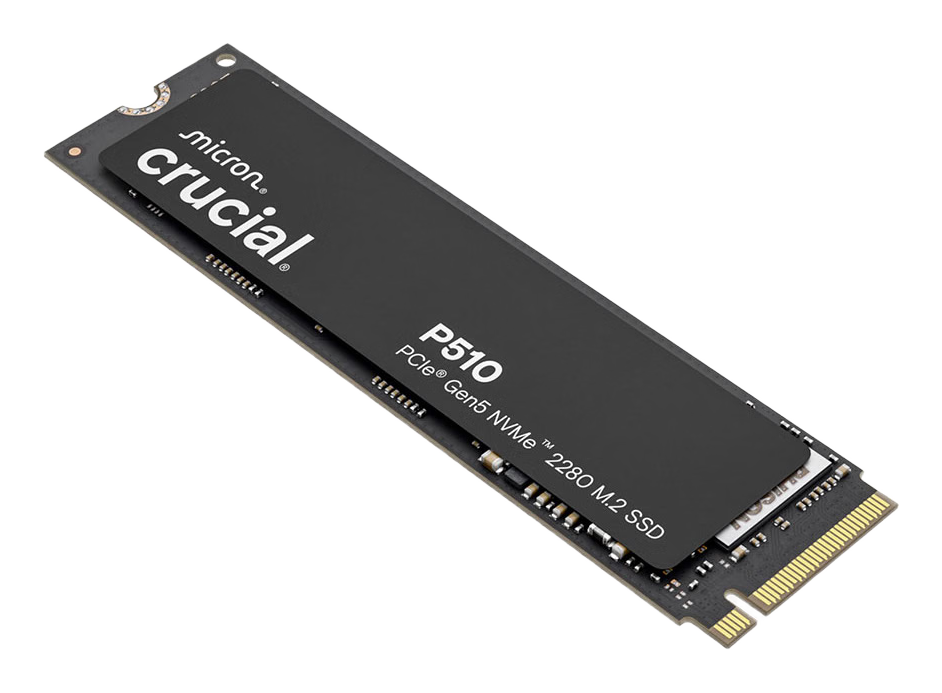

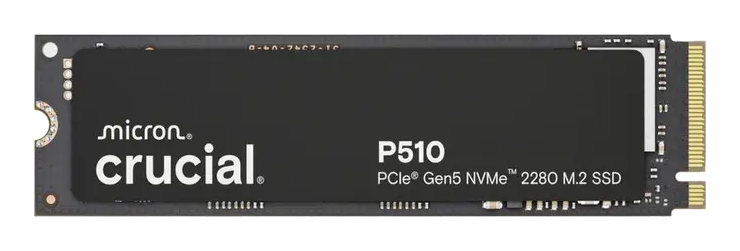

Crucial P510 2000GB

SSD Description

The Crucial P510 is Micron’s mainstream PCIe 5.0 drive built around the Phison PS5026-E26 controller and Micron 232-layer 3D TLC NAND. It uses an optimized firmware profile that caps the data rate to balance the 10,000 MB/s throughput against power, and the 2000GB model includes a DRAM cache (typically LPDDR4) to maintain consistent random I/O and reduce write amplification. The E26 controller produces significant heat, so a motherboard M.2 heatsink or active cooling is recommended to avoid thermal throttling (which typically triggers at 81°C). Sustained write speeds fall back to native TLC after the pseudo-SLC cache (around 30% of capacity) is exhausted, and full 10,000 MB/s performance requires a native PCIe 5.0 M.2 slot (Gen4 will cap performance at about 7,400 MB/s).

Key Specifications

• Interface: PCIe 5.0 x4 / NVMe 2.0
• Max Sequential Speeds: 10,000 MB/s Read, 8,700 MB/s Write
• Controller: Phison PS5026-E26 (8-channel)
• NAND Type: Micron 232-Layer 3D TLC
• DRAM Cache: Yes (LPDDR4)
• Endurance: 1200 TBW (Estimated for 2TB capacity class)
• Encryption: TCG Opal 2.01 compliant
• Features: Microsoft DirectStorage optimized, Dynamic SLC Caching

Hardware Alternatives

• Corsair MP700 Elite 2000GB: Shares the exact same controller and NAND configuration with nearly identical throughput targets.
• Gigabyte Aorus Gen5 10000: A direct hardware relative, often differentiated only by the inclusion of a large stock heatsink.
• Seagate FireCuda 540: Utilizes the same E26/Micron 232L platform but typically features firmware tuned slightly more aggressively for endurance.
• Crucial T700 2000GB: Uses the same Phison E26 + Micron 232L NAND hardware but with higher-binned components and unlocked firmware to reach around 12,000 MB/s; the P510 is the down-clocked alternative.
• Crucial T705 2000GB: Uses the same Phison E26 + Micron 232L NAND hardware but with higher-binned components and unlocked firmware to reach around 14,000 MB/s; the P510 is the down-clocked alternative.
