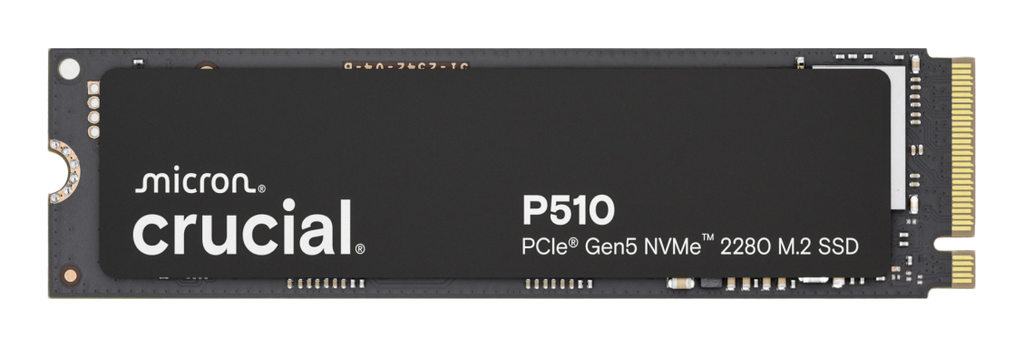

Crucial P510 1000GB

SSD Description

The Crucial P510 1000GB represents a transition into the enthusiast PCIe 5.0 ecosystem, utilizing the high-bandwidth Phison PS5026-E26 controller paired with Micron’s 232-layer 3D TLC NAND. This architecture allows the drive to saturate the Gen5 interface, leveraging the NAND's high transfer rate (typically 2400 MT/s) to achieve sequential throughput exceeding 10 GB/s. To sustain these velocities and manage logical-to-physical address mapping efficiently, the unit incorporates a dedicated LPDDR4 DRAM cache, ensuring low latency during random I/O operations. Thermal management is a critical operational constraint: the controller runs significantly hotter than previous Gen4 iterations, passive cooling from a motherboard heatspreader is the minimum requirement, and active cooling or high-mass heatsinks are recommended to avoid thermal throttling. Without adequate airflow, the drive may throttle down to HDD-level speeds to protect the NAND integrity once the critical junction temperature is breached.

Key Specifications

• Interface: PCIe 5.0 x4 (NVMe 2.0)
• Controller: Phison PS5026-E26 (12nm process)
• NAND Flash: Micron 232-Layer 3D TLC
• Sequential Read: 11,000 MB/s
• Sequential Write: 9,500 MB/s
• DRAM Cache: Yes (LPDDR4)
• Key Feature: Microsoft DirectStorage optimized firmware
• Encryption: Supports TCG Opal 2.01

Hardware Alternatives

• Corsair MP700: Hardware clone using the Phison E26 + Micron 232L design; shares nearly identical internal components and theoretical performance ceilings, differentiated primarily by firmware tuning and factory heatsink inclusion.
• Inland TD510: Hardware clone using the Phison E26 + Micron 232L design; shares nearly identical internal components and theoretical performance ceilings, differentiated primarily by firmware tuning and factory heatsink inclusion.
• Seagate FireCuda 540: Hardware clone using the Phison E26 + Micron 232L design; shares nearly identical internal components and theoretical performance ceilings, differentiated primarily by firmware tuning and factory heatsink inclusion.
• Crucial T700: Performance competitor and close relative, often clocked slightly higher.
• Gigabyte Aorus Gen5 10000: Performance competitor in the enthusiast Gen5 segment.
• Samsung 990 Pro: Market competitor that uses proprietary Gen4 controllers capping out at roughly 7450 MB/s, comparable in random 4K performance.
• WD Black SN850X: Market competitor that uses proprietary Gen4 controllers capping out at roughly 7450 MB/s, comparable in random 4K performance.
