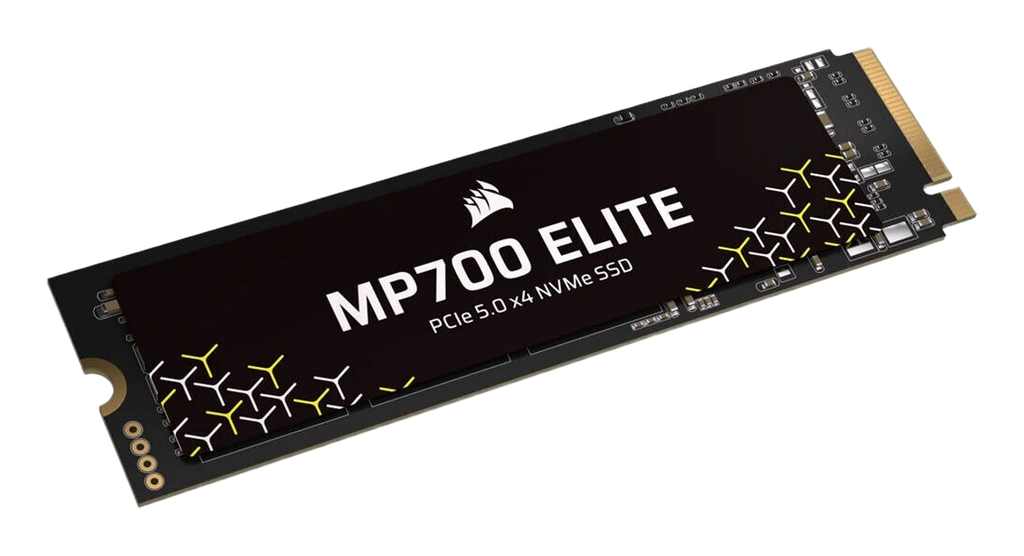

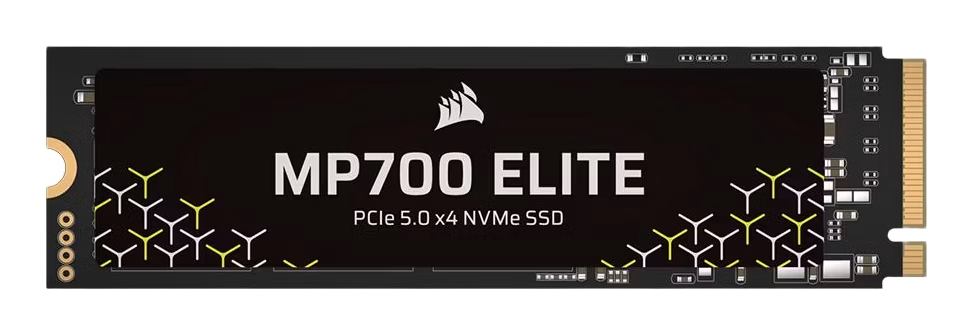

Corsair MP700 Elite 1000GB

SSD Description

The Corsair MP700 Elite 1000GB shifts from the enthusiast-grade Phison E26 architecture to the more power-efficient Phison PS5031-E31T controller. It uses a DRAM-less design with Host Memory Buffer (HMB) for mapping tables, pairs a 4-channel controller with high-bandwidth 3D TLC NAND (Kioxia BiCS8 218-layer or Micron 232-layer depending on batch), and leverages a 7nm controller process to reach Gen5 throughput while reducing thermal overhead. The drive runs cooler than early Gen5 E26-based drives and can often work with standard motherboard heatspreaders, but as a DRAM-less solution mixed-workload performance and sustained heavy writes may show higher latency once the pseudo-SLC (pSLC) cache is saturated; adequate case airflow is still recommended to avoid thermal throttling during long sequential transfers.

Key Specifications

• Interface: PCIe 5.0 x4, NVMe 2.0
• Controller: Phison PS5031-E31T (7nm, ARM Cortex-R5, 4-Channel)
• NAND Flash: 3D TLC (Triple-Level Cell)
• DRAM Cache: None (Uses HMB - Host Memory Buffer)
• Max Sequential Read: 10,000 MB/s
• Max Sequential Write: 8,500 MB/s
• Endurance: 600 TBW (Total Bytes Written)
• Physical Layout: Single-sided PCB (M.2 2280)
• Encryption: AES 256-bit Encryption support

Hardware Alternatives

• Corsair MP700 Pro: Uses the Phison E26 controller with onboard DRAM, offering higher theoretical speeds and better sustained write consistency but requiring more robust cooling and power delivery
• Corsair MP600 Pro LPX 1000GB: PCIe 4.0 alternative using the Phison E18 controller, limited to 7,100 MB/s, retains onboard DRAM and offers a different latency profile preferred by some workstation users
• Lexar NM1090 PRO 1000GB: Targets similar Gen5 entry-points, with controller implementations in this segment remaining fluid
• Samsung 990 PRO 1000GB: High-end PCIe 4.0 drive with a proprietary controller and dedicated DRAM that can provide competitive random I/O performance for OS operations and game loading
• Western Digital WD_BLACK SN850X 1000GB: High-end PCIe 4.0 alternative with a DRAM-equipped controller aimed at strong random I/O performance
• Sabrent Rocket 1000GB: Potential adopter profile for the E31T platform, targeting mainstream Gen5 performance without onboard DRAM
• GIGABYTE AORUS Gen4 1000GB: Example of an integrator presence in the market offering alternatives around the same performance bracket
