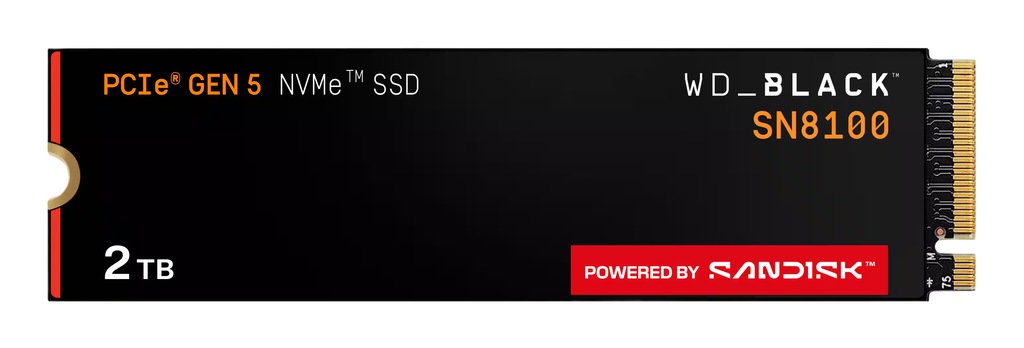

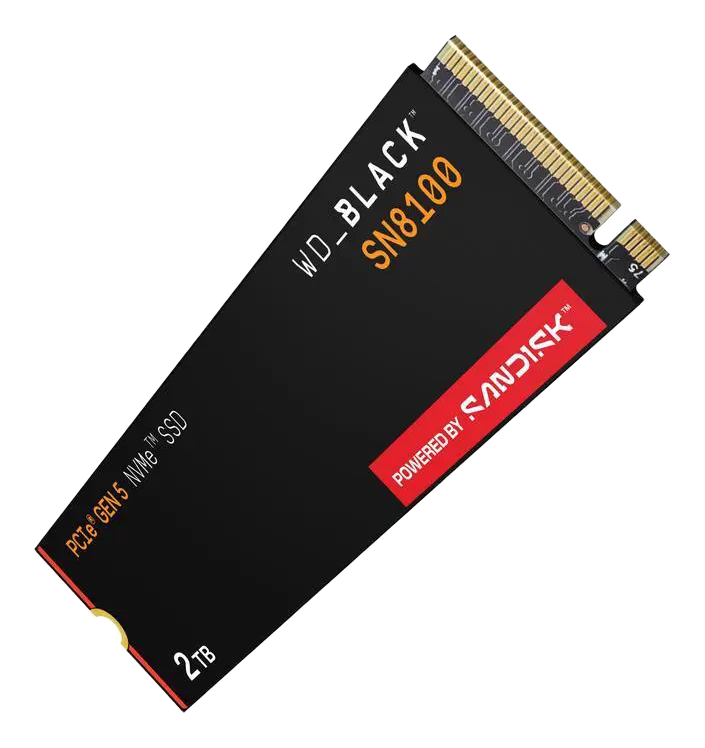

Western Digital WD_BLACK SN8100 2000GB

The Western Digital WD_BLACK SN8100 represents the company's high-performance entry into the PCIe 5.0 ecosystem, utilizing a vertically integrated architecture distinct from the Phison-based reference designs common in this speed tier. The drive relies on a proprietary, multi-core Western Digital controller engineered to handle the thermal and throughput demands of the Gen5 interface, paired with high-bandwidth Kioxia/WD BiCS 3D TLC NAND. To maintain the 14,900 MB/s throughput and manage heavy mapping tables, the architecture incorporates a dedicated DRAM cache, ensuring consistent latency during sustained write operations and random I/O workloads. Due to the extreme power density required to achieve transfer rates nearing 15 GB/s, the SN8100 operates with a high thermal profile; using the drive without a high-surface-area heatsink or active cooling will result in aggressive thermal throttling. The drive's firmware is heavily optimized for DirectStorage API compliance, prioritizing parallel request handling over pure burst speed in mixed-use scenarios.

Key Specifications

• Interface: PCIe 5.0 x4 / NVMe 2.0
• Sequential Read: 14,900 MB/s
• Sequential Write: 14,000 MB/s
• Controller: Proprietary Western Digital Architecture (PCIe Gen5)
• NAND Flash: Kioxia/WD BiCS 3D TLC
• Form Factor: M.2 2280
• DRAM Cache: Yes (DDR4/LPDDR4)

Hardware Alternatives

• Crucial T705 2000GB: Primary performance rival in the PCIe 5.0 bracket that utilizes the Phison PS5026-E26 controller and Micron 232-layer NAND, while the SN8100 relies on WD's in-house firmware logic rather than the Phison reference platform.
• Corsair MP700 PRO SE 2000GB: Another PCIe 5.0 competitor built on the Phison PS5026-E26 reference platform with Micron 232-layer NAND, contrasted with the SN8100's proprietary WD architecture.
• Samsung 990 PRO 2000GB: A PCIe 4.0 drive that is significantly slower in sequential throughput but competes on proprietary controller design and random I/O efficiency for workstation tasks where raw bandwidth is less critical.
• Western Digital WD_BLACK SN850X 2000GB: The direct architectural predecessor to the SN8100; shares the same design philosophy and firmware DNA but the SN8100 upgrades the physical interface and NAND bus width to accommodate Gen5 speeds.
