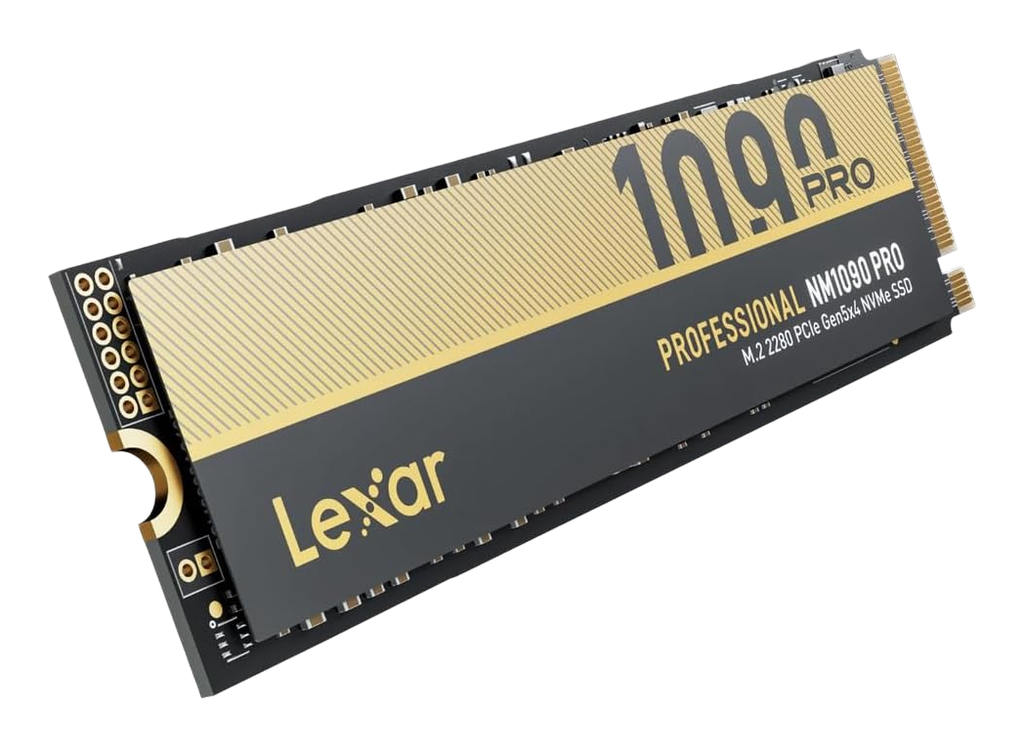

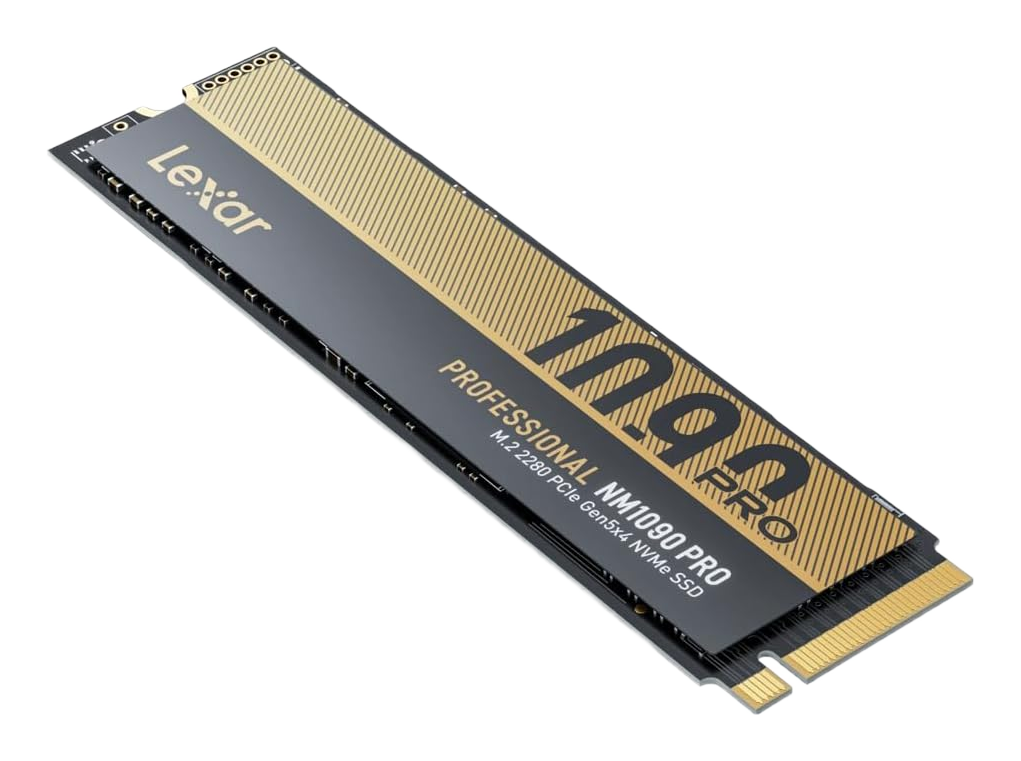

Lexar NM1090 PRO 2000GB

The Lexar NM1090 PRO leverages the bandwidth of the PCIe 5.0 x4 interface to deliver throughput near the limits of current consumer technology. Its architecture pairs a Phison PS5026-E26 controller with Micron 232-layer 3D TLC NAND and a dedicated LPDDR4 DRAM cache for low latency and consistent random I/O performance at Gen5 speeds. The drive relies on an active thermal solution with an integrated heatsink and built-in micro-fan to manage the E26 controller's relatively high TDP, allowing it to sustain 14,000 MB/s burst read speeds for longer durations, though the added Z-height of the cooling assembly can conflict with large GPU backplates or motherboards that use proprietary M.2 locking mechanisms or thermal armor.

Key Specifications

• Interface: PCIe 5.0 x4 / NVMe 2.0
• Max Sequential Speeds: 14,000 MB/s Read / 13,000 MB/s Write
• Controller: Phison PS5026-E26
• NAND Configuration: Micron 232-Layer 3D TLC
• DRAM Cache: Yes (LPDDR4/4X)
• Thermal Design: Active Heatsink (Fan-assisted)
• Endurance: approx. 1400 TBW for 2TB

Hardware Alternatives

• Crucial T705 2000GB: Virtually identical hardware architecture (E26 + Micron 232L NAND); performance differences are largely dependent on firmware maturity and cooling efficiency.
• Corsair MP700 PRO SE 2000GB: Another direct hardware clone utilizing the same controller and NAND combination, available in similar active cooling variants.
• MSI Spatium M570 PRO: Shares the same logic and storage media but often differentiates via passive thermal fin-stack designs rather than active fans.
