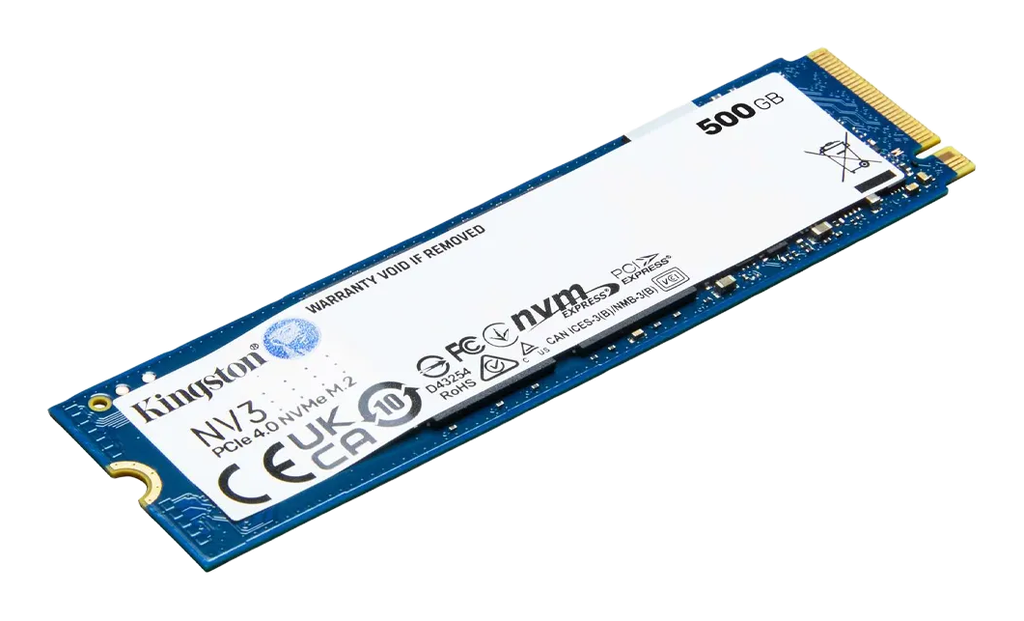

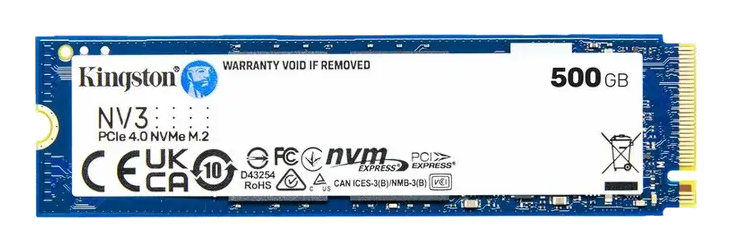

Kingston NV3 500GB

The Kingston NV3 500GB is a mid-range PCIe 4.0 NVMe drive with a DRAM-less design that uses Host Memory Buffer (HMB). Launch iterations typically pair a Silicon Motion SM2268XT controller with 3D QLC NAND, producing sequential throughputs that sit in the lower-to-mid tier of the Gen4 interface and favor burst performance and storage density over sustained write consistency.

Key Specifications

• Interface: PCIe 4.0 x4 / NVMe 1.4
• Max Sequential Speeds: 5000 MB/s Read / 3000 MB/s Write
• Controller: Silicon Motion SM2268XT (Subject to revision)
• NAND Type: 3D QLC (Quad-Level Cell)
• DRAM Cache: No (HMB - Host Memory Buffer)

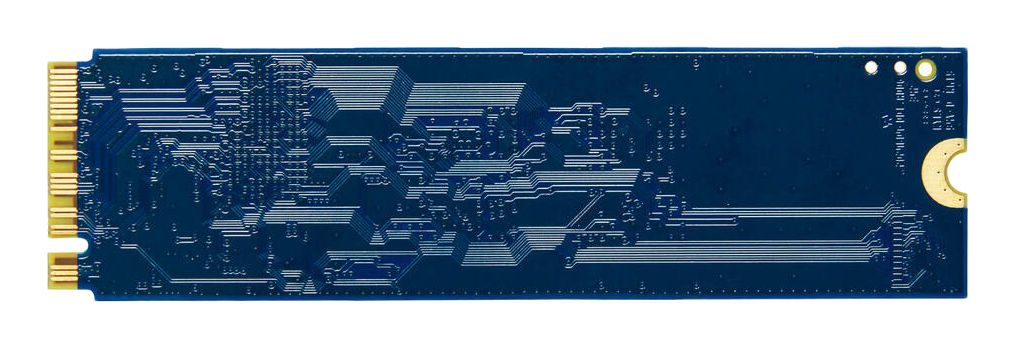

• Physical Traits: Single-sided M.2 2280 PCB; beneficial for clearance in thin laptops.
• Endurance: Lower relative TBW rating typical of QLC-based media at 500GB capacities

Hardware Alternatives

• Crucial P3 Plus: The most direct architectural rival. Both drives utilize QLC NAND and a DRAM-less controller design to target the entry-to-mid Gen4 segment, though the NV3 generally offers higher peak burst speeds.
• WD Blue SN580 / SN770: These drives occupy a similar performance tier but typically utilize TLC NAND, offering different endurance characteristics and sustained write profiles compared to the QLC-based NV3.
• Lexar NM790: A high-performance alternative that utilizes a Maxio controller. While it shares the DRAM-less nature of the NV3, it generally targets the upper limits of PCIe 4.0 saturation rather than the mid-range.
