Kingston NV3 1000GB

The Kingston NV3 is a mid-range PCIe 4.0 NVMe drive that succeeds the NV2 with updated controller logic and density optimizations. It uses a DRAM-less design with Host Memory Buffer (HMB) to leverage system RAM for address mapping and typically pairs a Silicon Motion SM2268XT controller with high-density 3D QLC NAND, tuned for burst sequential throughput within the thermal and power constraints of the M.2 2280 form factor. The drive follows a variable BOM strategy, so sustained write performance after pseudo-SLC cache saturation may vary between units, making it better suited for read-heavy consumer workloads.

Key Specifications

• Interface: PCIe 4.0 x4 (NVMe 2.0 Support)
• Sequential Speeds: 6,000 MB/s Read / 4,000 MB/s Write
• Controller: Silicon Motion SM2268XT (Subject to revision)
• NAND Type: 3D QLC (Subject to revision)
• Endurance: 320 TBW (Total Bytes Written)

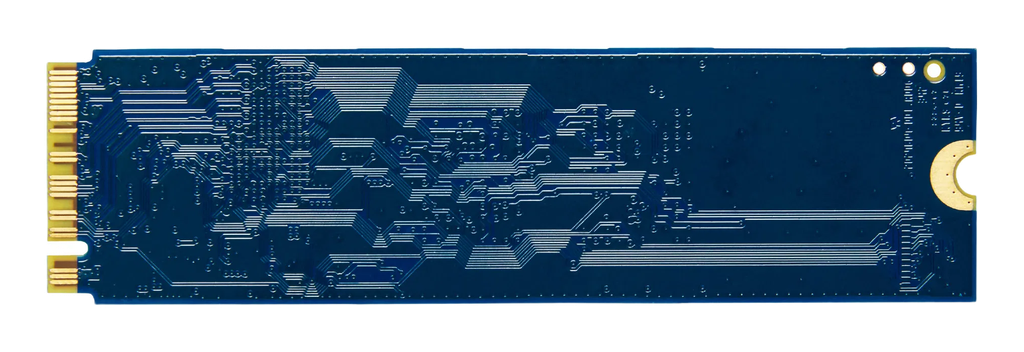

• Physical Layout: Single-sided PCB (Optimal for slim laptops and interference-sensitive builds)
• Design: DRAM-less with Host Memory Buffer (HMB) for address mapping

Hardware Alternatives

• Crucial P3 Plus: Shares a similar architectural tier as a QLC-based, DRAM-less Gen4 drive; the NV3 uses a newer controller generation yielding higher peak sequential reads (6000 MB/s) compared to the P3 Plus's ~5000 MB/s, though sustained performance profiles remain comparable.
• WD Blue SN580: Functionally acts as a direct competitor in the DRAM-less mid-range segment; the SN580 consistently utilizes TLC NAND, which generally offers superior endurance and sustained write speeds compared to the QLC typically found in the NV3, despite the NV3 having higher burst specifications.
• Lexar NM790: Represents the performance ceiling of DRAM-less Gen4 designs; while the NV3 uses similar HMB technology, the NM790 (often using the Maxio MAP1602 controller and TLC NAND) can saturate the PCIe 4.0 bus at 7400 MB/s, outperforming the NV3 in both peak throughput and heavy-load consistency.
