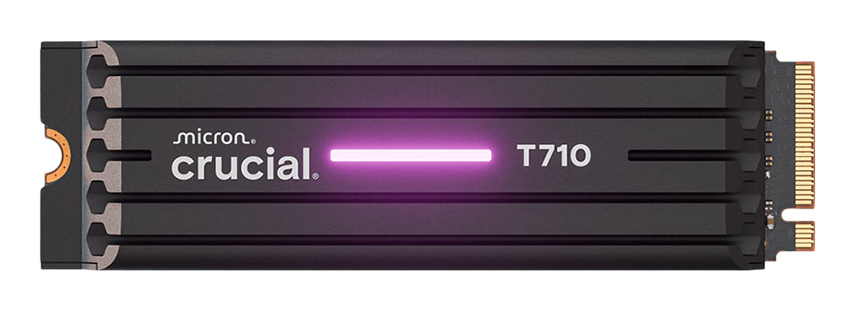

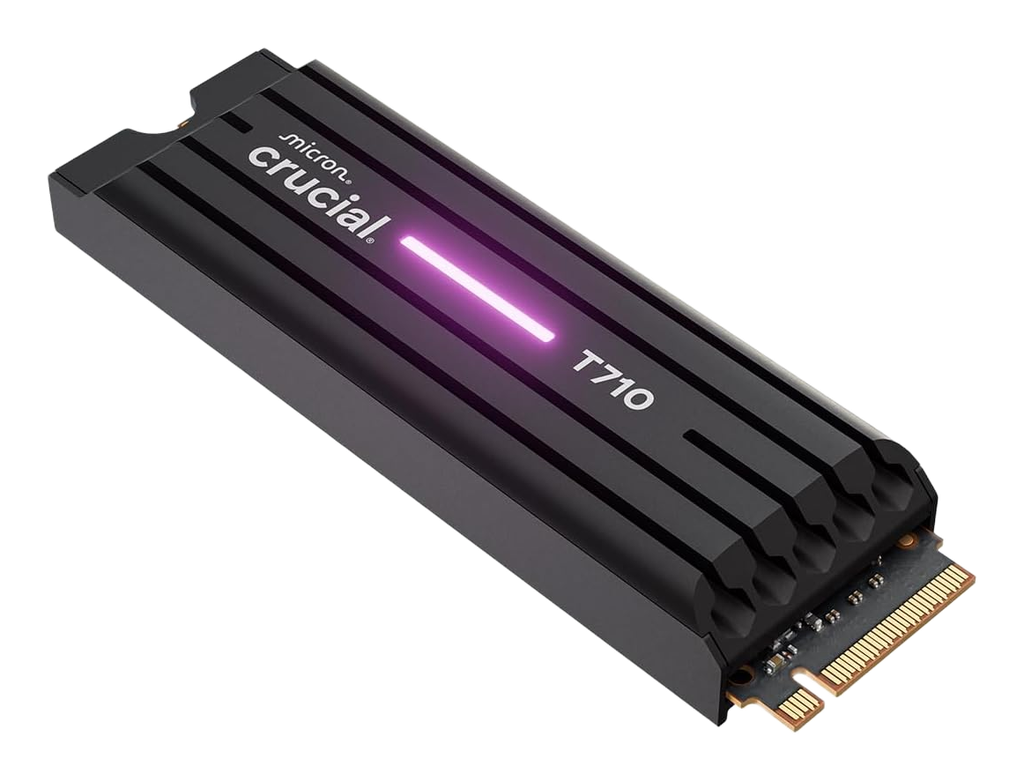

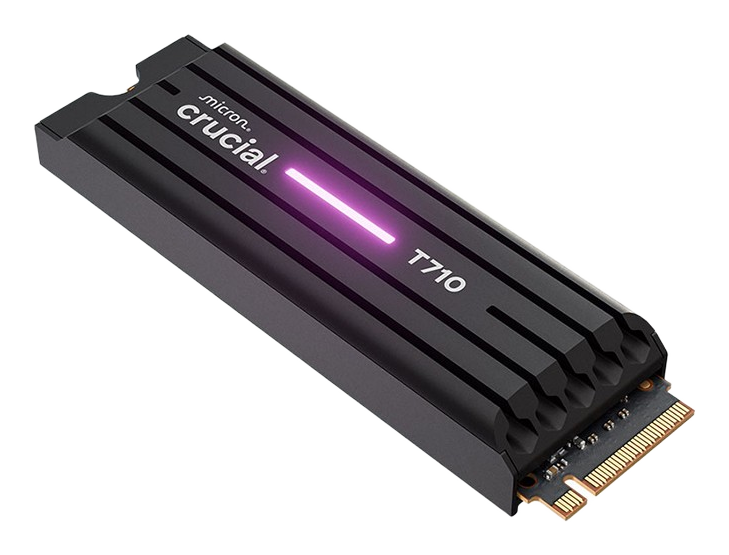

Crucial T710 4000GB

SSD Description

The Crucial T710 leverages a Phison PS5026-E26 controller paired with Micron’s 232-layer 3D TLC NAND running at maximal bus speeds (2400 MT/s) over a PCIe 5.0 x4 interface to deliver near-saturation bandwidth. The drive reaches sequential read speeds of 14,500 MB/s and sequential write speeds of 13,800 MB/s, and uses a dedicated LPDDR4 DRAM cache to maintain mapping table performance and sustained write consistency. This architecture produces significant thermal output and will rapidly engage thermal throttling without substantial heatsinking or active cooling, often reducing speeds to protect NAND integrity once critical temperatures (typically >81°C) are reached. The configuration also requires optimized firmware to handle aggressive power states associated with peak transfers; some platforms have shown initialization latency with earlier revisions.

Key Specifications

• Interface: PCIe 5.0 x4 / NVMe 2.0
• Controller: Phison PS5026-E26 (8-channel)
• NAND Flash: Micron 232-Layer 3D TLC (B58R) running at 2400 MT/s
• Sequential Read: 14,500 MB/s
• Sequential Write: 13,800 MB/s
• DRAM Cache: Yes (LPDDR4)
• Features: Microsoft DirectStorage optimized, TCG Opal 2.01 security support

Hardware Alternatives

• Corsair MP700 PRO 4000GB: Shares the same controller and NAND configuration; performance deltas are mostly attributed to firmware revisions and stock cooling solutions.
• MSI Spatium M580 FROZR: A hardware clone utilizing the same core components, differentiated primarily by its massive passive tower cooler design.
• Seagate FireCuda 540: Utilizes the same E26 controller but is typically tuned for slightly lower, more sustained transfer speeds rather than the peak burst speeds seen on the T710.
