Crucial P5 Plus 2000GB

SSD Description

The Crucial P5 Plus is a vertically integrated storage solution using Micron’s DM02A1 8-channel controller paired with Micron 176-layer 3D TLC NAND. The 2000GB capacity uses a DRAM cache (typically 2GB of LPDDR4) to manage logical-to-physical mapping, supporting consistent random I/O and reducing write amplification under mixed workloads. Thermal management is improved over the previous P5, but sustained heavy writes can still push temperatures where a heatsink is advisable in restricted-airflow environments. Firmware tuning favors high random read IOPS over maximizing sequential write throughput, and the SKU maintains a consistent bill of materials.

Key Specifications

• Interface: PCIe 4.0 x4 / NVMe 1.4
• Controller: Micron DM02A1 (Proprietary, 8-Channel)
• NAND Flash: Micron 176-layer 3D TLC
• Sequential Read/Write: 6600 MB/s / 5000 MB/s
• DRAM Cache: 2GB LPDDR4
• Endurance (TBW): 1200 TBW
• Encryption: Hardware-based AES 256-bit (TCG Opal 2.0 compliant)

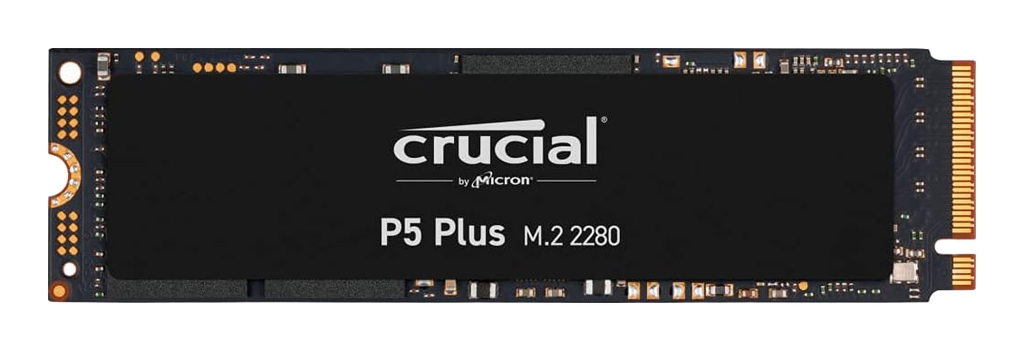

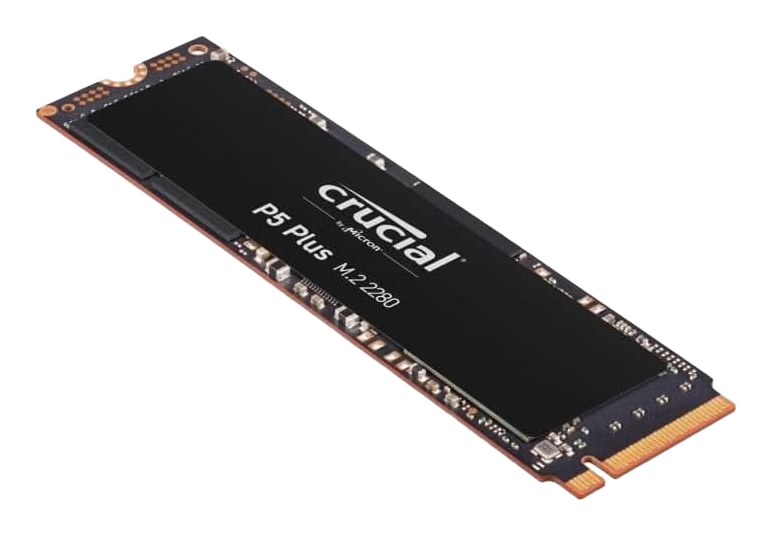

• Physical Trait: Single-sided PCB design (components on top side only)

Hardware Alternatives

• Samsung 980 PRO 2000GB: The primary competitor in the vertically integrated space; offers slightly higher sequential speeds but shares a similar endurance and thermal profile.
• WD Black SN850: Another proprietary design that generally offers higher peak SLC cache burst speeds but comparable real-world loading times.
• Seagate FireCuda 530: Utilizes the same Micron 176-layer TLC NAND as the P5 Plus but pairs it with the Phison E18 controller, highlighting differences in tuning between Micron's in-house silicon and Phison’s enthusiast controller.
• Kingston KC3000 2000GB: Uses the same Micron 176-layer TLC NAND but pairs it with the Phison E18 controller, emphasizing raw throughput focus versus stability/efficiency.
