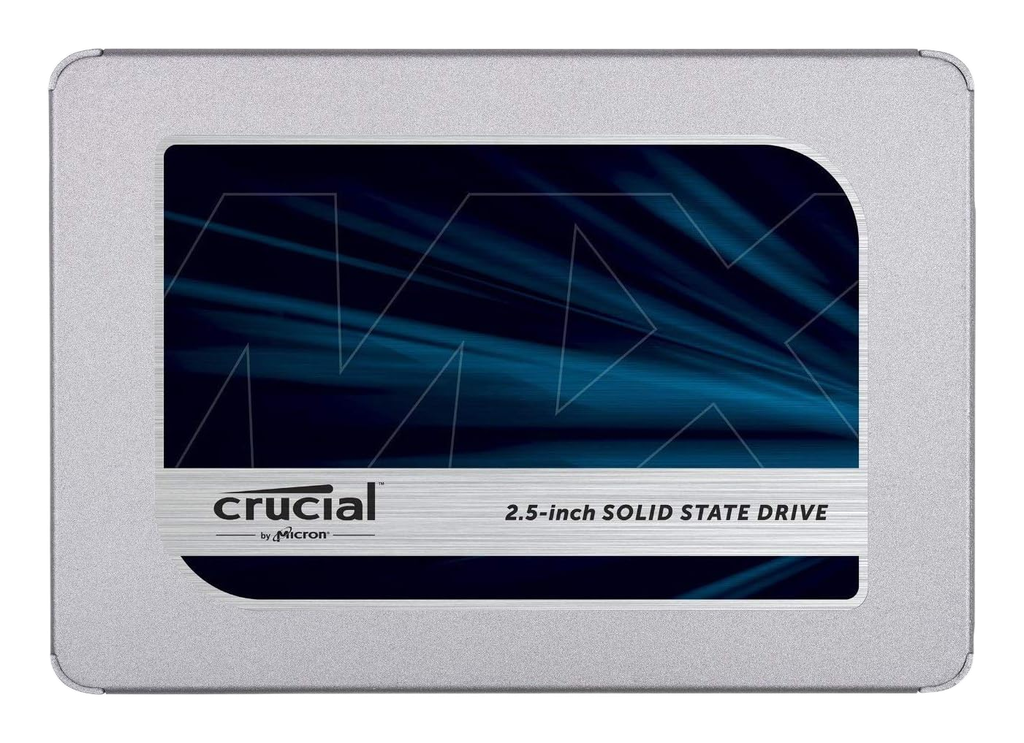

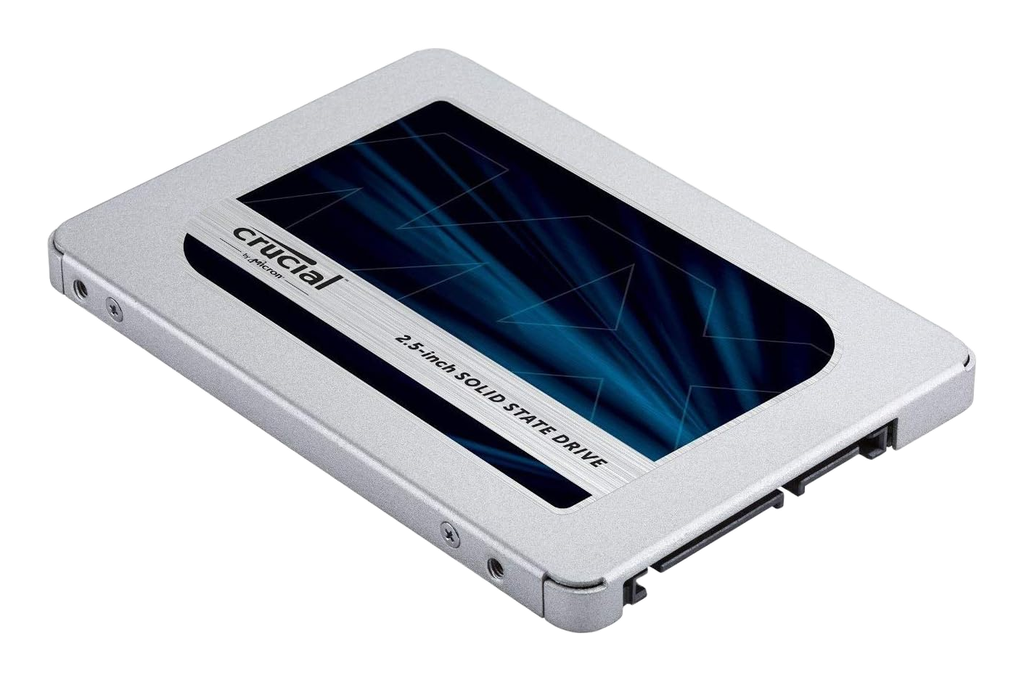

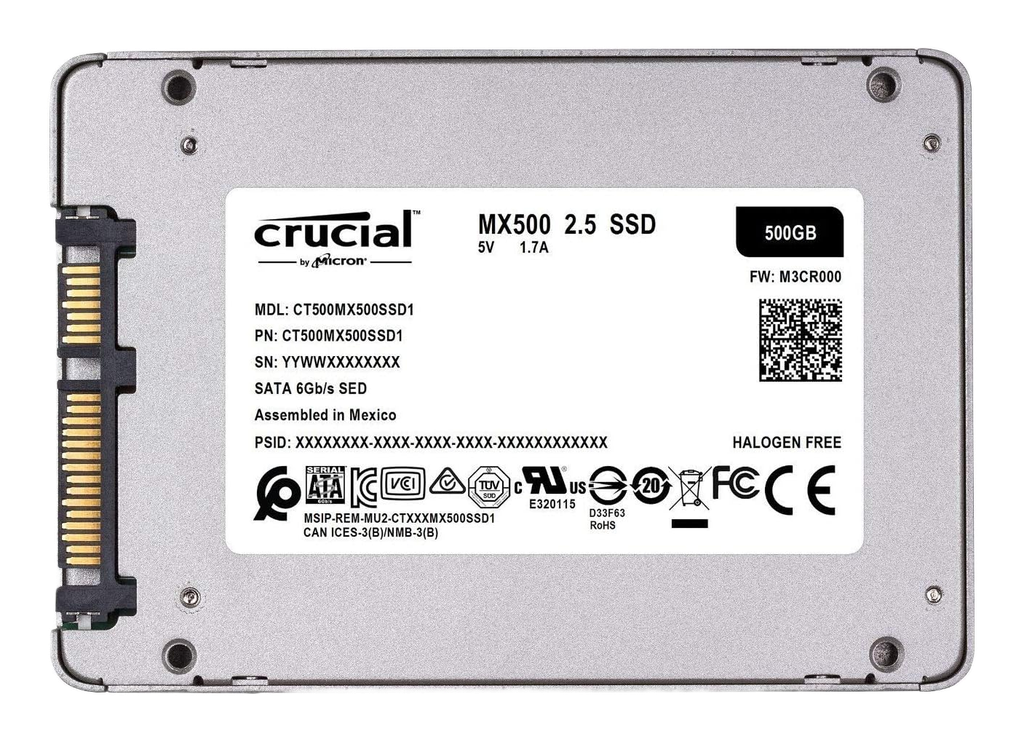

Crucial MX500 500GB

SSD Description

The Crucial MX500 500GB uses a vertically integrated design pairing Micron 3D TLC NAND with a Silicon Motion controller (SM2258 / SM2259), and retains a dedicated DRAM cache to sustain random I/O and reduce write amplification under heavier workloads. The architecture is tuned to saturate the SATA III (6Gb/s) bus for stable, sustained throughput and includes Integrated Power Loss Immunity via capacitors. Over its production life the MX500 has seen silent component revisions (64-layer → 96-layer → 176-layer Micron 3D TLC) while keeping the DRAM buffer; updating to firmware M3CR046 or newer is recommended to correct earlier SMART telemetry/reporting behavior.

Key Specifications

• Interface: SATA III (6Gb/s)
• Sequential Speeds: Up to 560 MB/s Read / 510 MB/s Write
• Controller: Silicon Motion SM2258 / SM2259 (Revision dependent)
• NAND Type: Micron 3D TLC
• DRAM Cache: Yes
• Encryption Support: Hardware-based AES 256-bit, TCG Opal 2.0, IEEE-1667 (Microsoft eDrive compatible)
• Data Protection: Integrated Power Loss Immunity (Partial/Consumer-grade implementation)

Hardware Alternatives

• Samsung 870 EVO 500GB: Primary direct competitor in the high-performance SATA tier, using a proprietary Samsung MKX controller and V-NAND with similar bus-saturated performance but a different endurance rating structure.
• WD Blue 3D NAND / SanDisk Ultra 3D: Direct performance equivalents that often use Marvell controllers and target the same hardware tier (TLC NAND + DRAM Cache) required for sustained OS drive performance.
• Crucial BX500 500GB: Immediate internal hardware relative that uses similar Micron NAND but omits the DRAM cache and power loss capacitors, resulting in significantly lower random IOPS and sustained write performance compared to the MX architecture.
