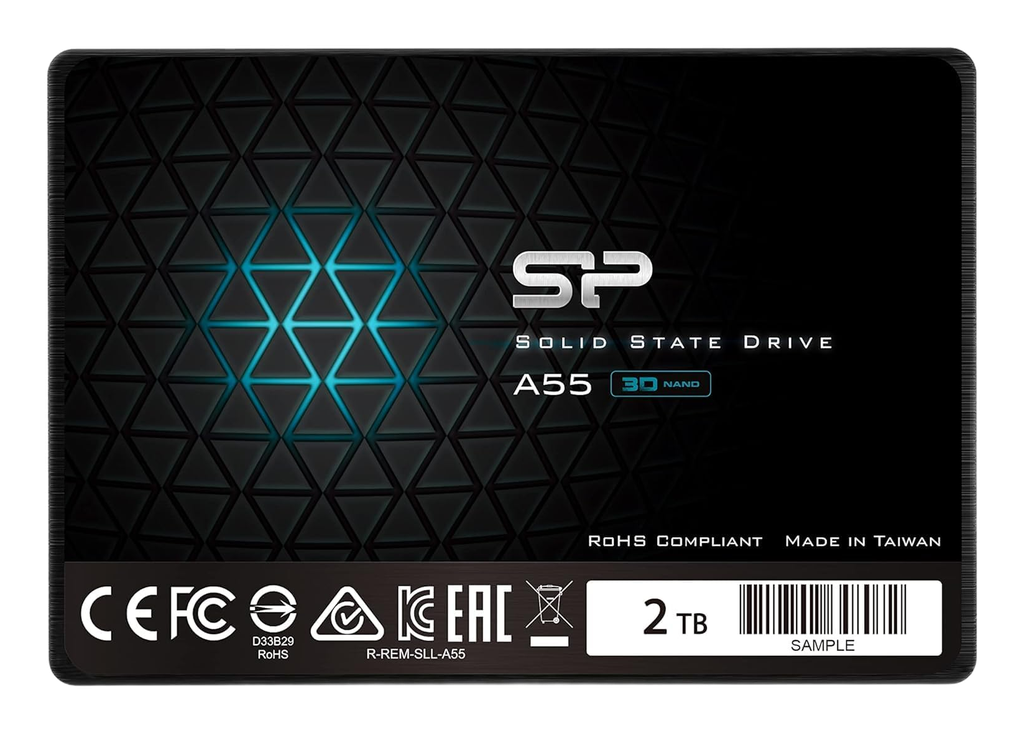

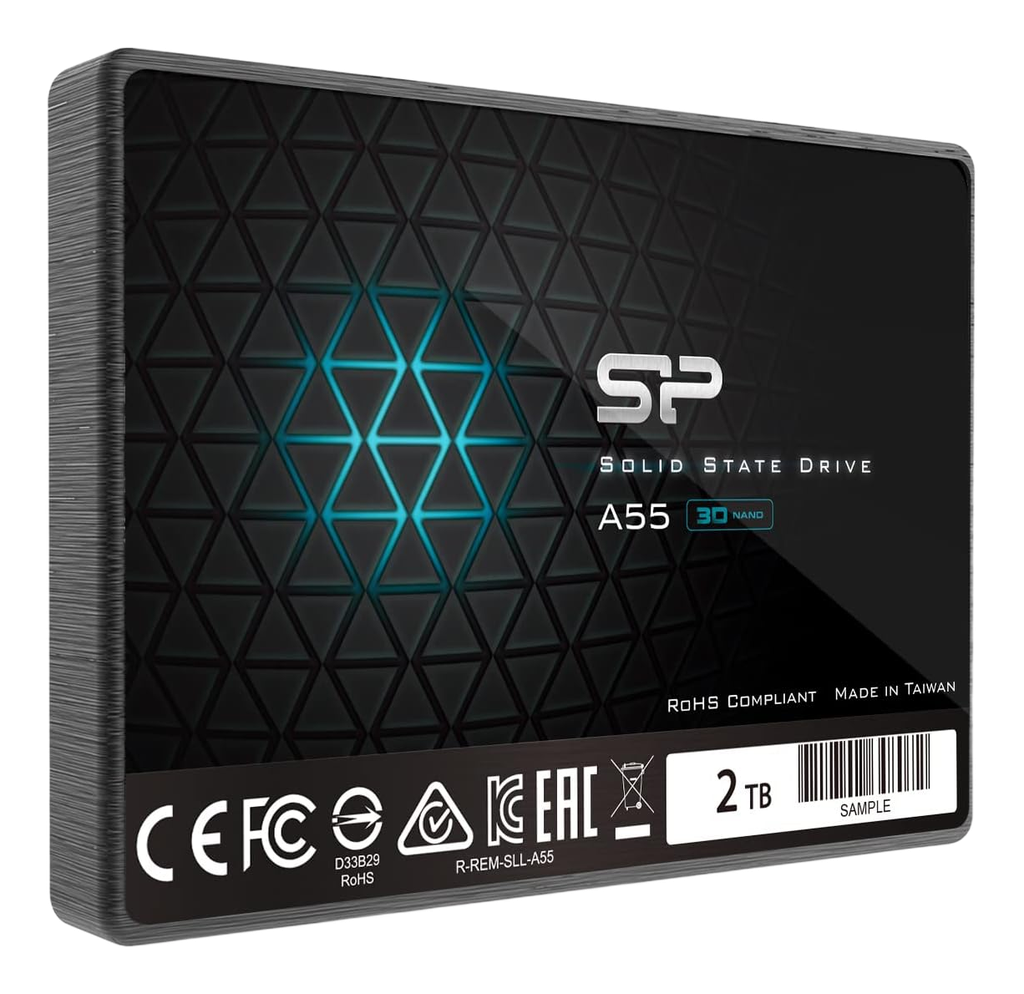

Silicon Power Ace A55 2000GB

The Silicon Power Ace A55 2000GB is an entry-level SATA III drive that generally uses a DRAM-less design and pairs a Silicon Motion SM2258XT or Phison S11-class controller with high-density 3D TLC NAND. It relies on a pseudo-SLC caching algorithm to sustain burst write speeds and can see significant performance degradation once that cache is exhausted during large sustained transfers. The model is subject to variable component sourcing across revisions and uses a plastic chassis, which offers less passive heat dissipation than metal alternatives; the drive rarely reaches thermal throttling limits due to the bandwidth ceiling of the SATA interface.

Key Specifications

• Interface: SATA III (6Gbps)
• Sequential Read: 560 MB/s
• Sequential Write: 530 MB/s
• Controller: Variable (Commonly SM2258XT or Phison S11)
• NAND Flash: 3D TLC
• DRAM Cache: None (DRAM-less)
• Form Factor: 2.5" (7mm height)
• Features: SLC Caching, ECC (Error Correction Code), S.M.A.R.T. support

Hardware Alternatives

• Crucial BX500 2000GB: A direct hardware relative often utilizing the same Silicon Motion SM2258XT/SM2259XT controller architecture and QLC/TLC NAND configurations.
• Kingston A400: Functionally similar to A55 revisions using Phison controllers (S11), offering comparable random I/O performance limits.
• ADATA SU650: Shares the DRAM-less design philosophy and SLC caching limitations, targeting the same basic storage tier.
