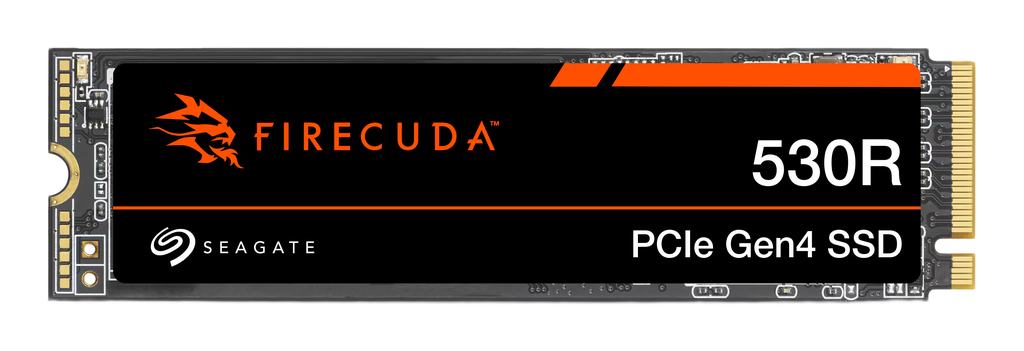

Seagate FireCuda 530R 1000GB

SSD Description

The Seagate FireCuda 530R is a refreshed iteration of the FireCuda 530 series that maximizes PCIe 4.0 bandwidth using the Phison PS5018-E18 controller. It pairs high-density 3D TLC NAND flash with a dedicated DDR4 DRAM cache to provide low latency and sustained throughput for heavy sequential transfers. The "R" designation denotes a hardware revision intended to improve supply chain availability and slightly push peak sequential read speeds to the interface limit. The drive emphasizes high write endurance and is positioned for workstation use cases and enthusiast gaming.

Key Specifications

• Interface: PCIe 4.0 x4 / NVMe 1.4
• Controller: Phison PS5018-E18 (8-channel)
• NAND Flash: 3D TLC (Triple-Level Cell)
• DRAM Cache: Yes (DDR4)
• Sequential Speeds: 7400 MB/s Read, 7000 MB/s Write
• Endurance: High TBW rating (Hardware optimized for write-intensive tasks)
• Form Factor: M.2 2280 (Double-sided PCB likely for higher capacities, verify for 1TB)

Hardware Alternatives

• Kingston KC3000 1000GB: Utilizes the same E18 controller and similar Micron TLC NAND; performance profiles are highly correlated.
• Kingston FURY Renegade 1000GB: Utilizes the same E18 controller and similar Micron TLC NAND; performance profiles are highly correlated.
• Corsair MP600 Pro LPX 1000GB: Another direct E18 implementation sharing similar sequential bandwidth and thermal characteristics.
• Sabrent Rocket 1000GB: Shares the controller architecture and is a close reference-design counterpart.
• Seagate FireCuda 530 1000GB: The original 530; performance metrics are nearly identical, though the 530R may use newer NAND batches depending on manufacture date.
• Samsung 990 Pro 1000GB: Uses Samsung's proprietary Pascal controller and V-NAND and offers slightly higher random 4K read performance at low queue depths compared to E18-based drives.
• WD Black SN850X 1000GB: Features Western Digital’s proprietary controller and BiCS NAND, competing closely on load times and sequential throughput.
