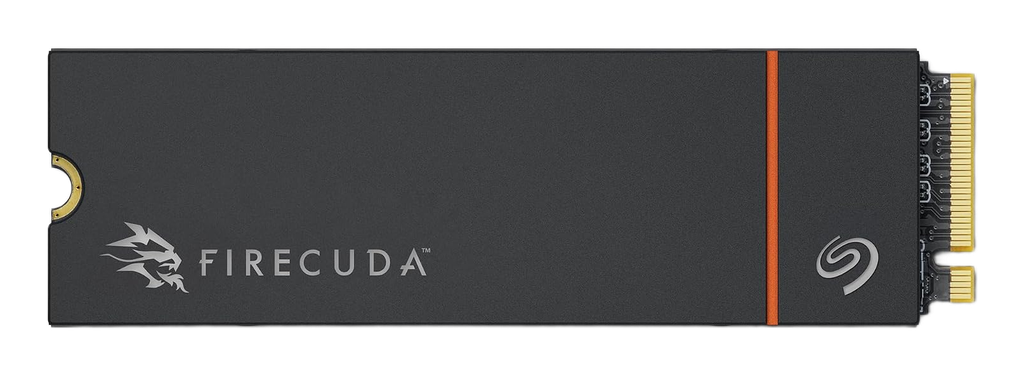

Seagate FireCuda 530R 4000GB

SSD Description

The Seagate FireCuda 530R is a high-end PCIe 4.0 NVMe drive built on the Phison PS5018-E18 controller architecture. The 4000GB model includes a DDR4 DRAM cache and pairs the 8-channel controller with high-density 3D TLC NAND (commonly Micron 176-layer or 232-layer depending on the batch). Firmware is optimized for sustained write consistency and endurance while the drive operates near the theoretical saturation point of the PCIe 4.0 x4 interface. The Phison E18 controller is thermally dense and the 4TB model uses a double-sided M.2 2280 PCB, which may require substantial thermal management and can present clearance issues in ultra-thin laptops.

Key Specifications

• Interface: PCIe 4.0 x4 / NVMe 1.4
• Controller: Phison PS5018-E18 (8-channel)
• NAND Type: 3D TLC (Triple-Level Cell)
• DRAM Cache: Yes (DDR4)
• Sequential Speeds: 7400 MB/s Read / 6800 MB/s Write
• Endurance Rating: High TBW; original 530 4TB rated at ~5100 TBW
• Physical Layout: M.2 2280 (Double-sided at 4TB)

Hardware Alternatives

• Kingston KC3000 4000GB: Closest hardware relative, offering nearly identical throughput behavior.
• Kingston FURY Renegade 4000GB: Closely matched E18-based performance and endurance characteristics.
• Corsair MP600 Pro XT: Another E18 variant that focuses on heavy heatsink implementation for sustained loads.
• Sabrent Rocket 4 Plus: Utilizes similar internal components with different firmware tuning.
• Samsung 990 PRO 4000GB: Proprietary competitor with similar random I/O performance and power efficiency.
• WD Black SN850X 4000GB: Direct competitor in gaming load times and sequential throughput using Western Digital's in-house controller and NAND.
