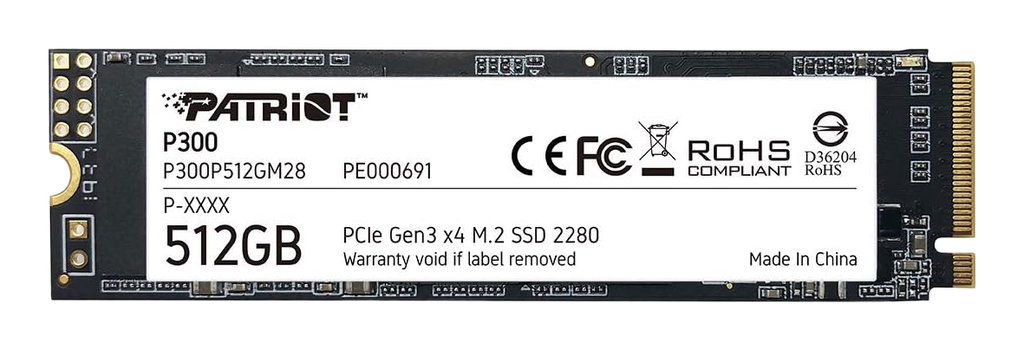

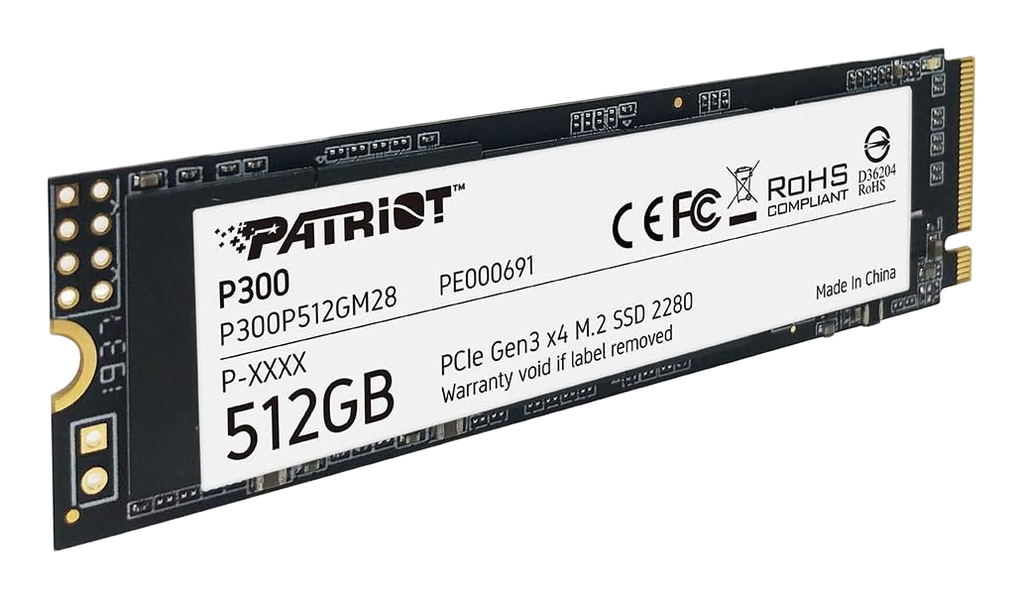

Patriot P300 512GB

SSD Description

The Patriot P300 is an entry-level NVMe SSD built on a DRAM-less architecture that uses Host Memory Buffer (HMB) to offset the lack of onboard volatile memory. The drive typically pairs a 4-channel controller—most commonly the Silicon Motion SM2263XT or Phison E13T—with 3D TLC NAND, which limits it to moderate PCIe 3.0 throughput and prioritizes power efficiency and compact physical integration over sustained high-bandwidth performance. Component variability across regions and batches is common, and sustained write workloads that exceed the pseudo-SLC cache capacity will cause a sharp drop in transfer speeds as the drive switches to direct-to-TLC mode. The simplified controller architecture results in low power draw and minimal thermal output, making thermal throttling rare even in airflow-restricted environments like laptops.

Key Specifications

• Capacity: 512GB
• Interface: PCIe Gen 3.0 x4 (NVMe 1.3)
• Controller: Silicon Motion SM2263XT or Phison E13T (variable by region/batch)
• NAND: 3D TLC (variable manufacturer)
• Sequential Read/Write: 1700 MB/s / 1100 MB/s
• DRAM Cache: None (uses Host Memory Buffer)

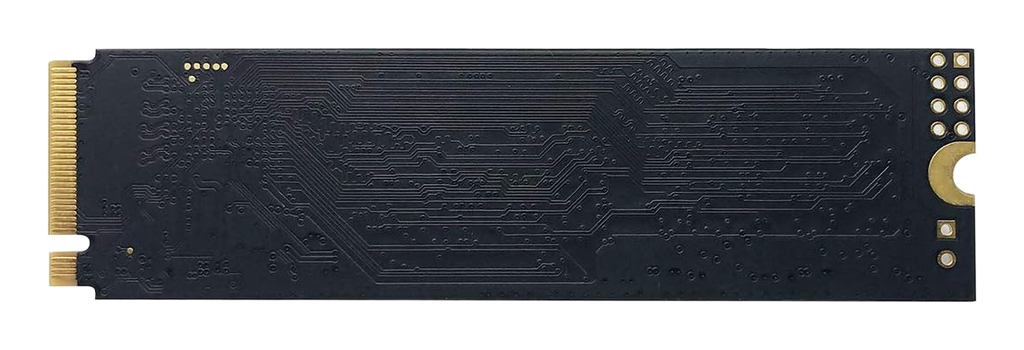

• Physical Layout: Single-sided M.2 2280 PCB

Hardware Alternatives

• TeamGroup MP33: functions as a close hardware relative, frequently utilizing the same Silicon Motion SM2263XT controller and HMB architecture to deliver nearly identical IOPS and sequential throughput profiles.
• Silicon Power A60: a direct competitor in the DRAM-less PCIe 3.0 segment, sharing the P300’s reliance on the SM2263XT controller in most revisions and offering a similar endurance rating and thermal profile.
• Crucial P2: occupies a similar performance tier; earlier revisions used TLC NAND comparable to the P300, while later revisions swapped to QLC NAND, affecting sustained write consistency despite similar peak burst speeds.
