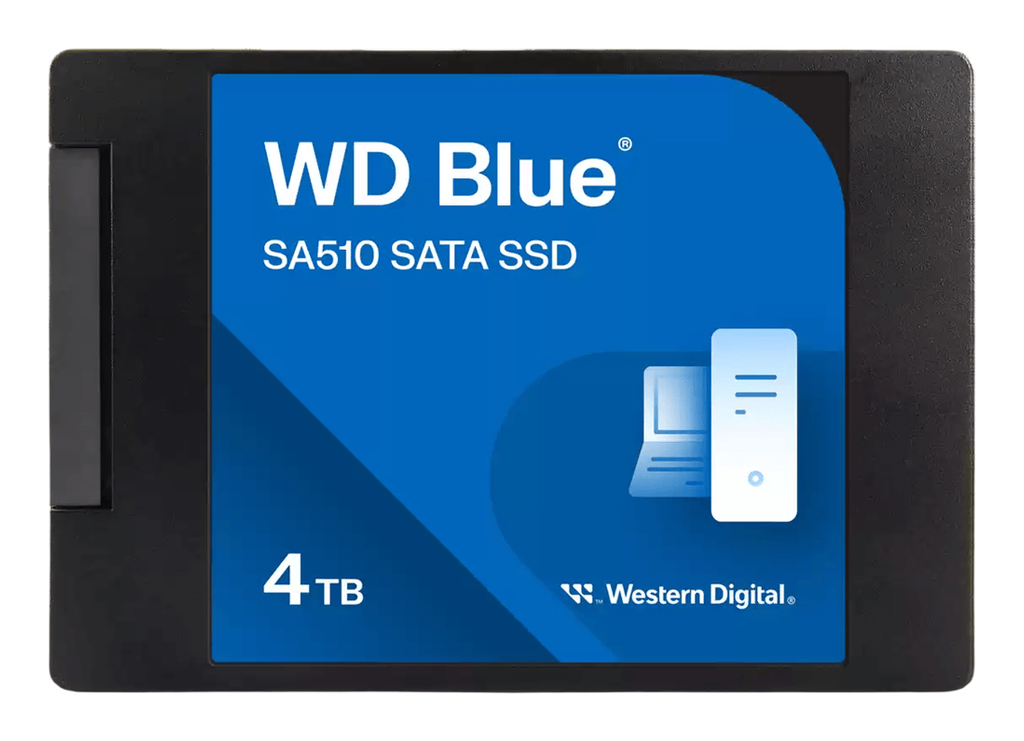

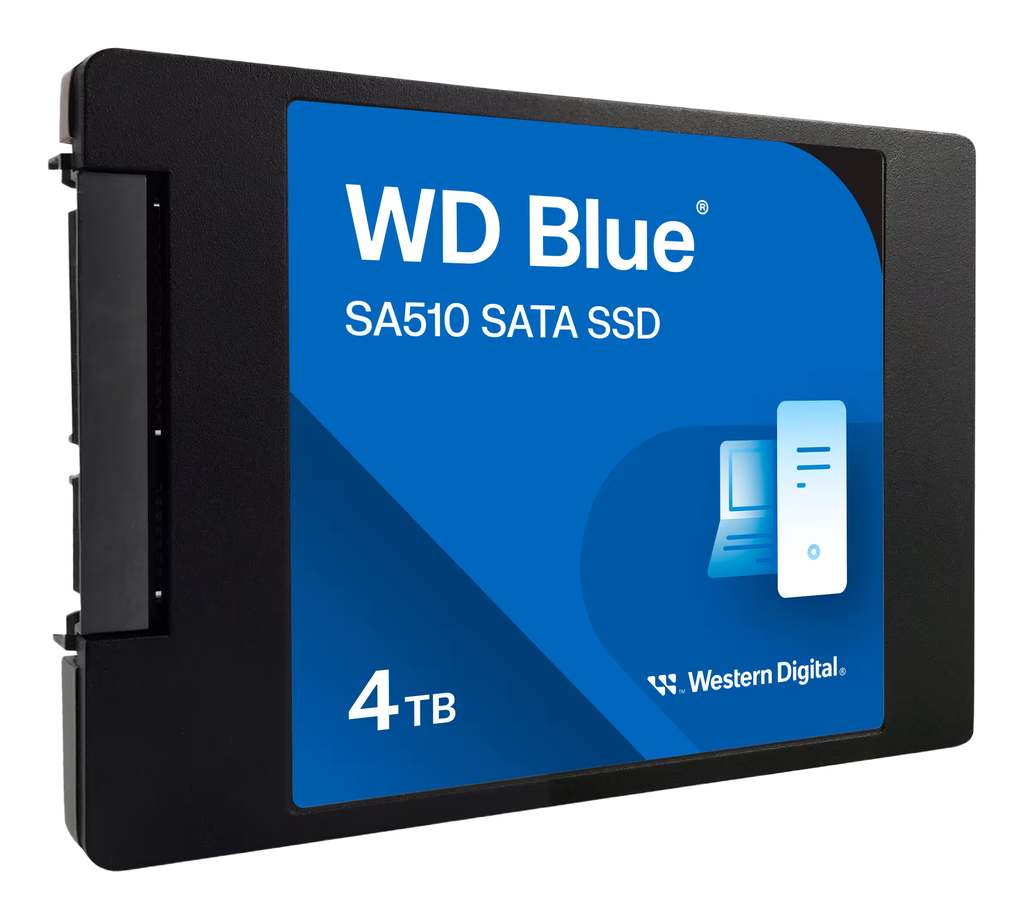

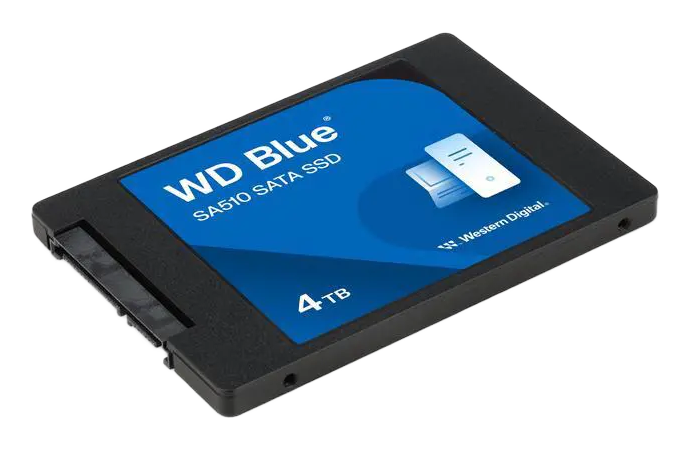

Western Digital Blue SA510 4000GB

The Western Digital Blue SA510 4000GB represents a structural shift in the company's SATA lineage, transitioning from the Marvell-based architecture of the previous WD Blue 3D to a simplified, proprietary design. This unit utilizes an in-house SanDisk controller paired with BiCS5 112-layer TLC NAND. The SA510 architecture is DRAM-less, relying on a static SLC (Single-Level Cell) cache and host-memory management to saturate the SATA III interface rather than dedicated onboard DRAM buffering.

The SA510 series has a documented history of firmware-related instability in early production batches, with reports of drives unmounting unexpectedly or locking into a read-only state due to logic errors in initial firmware revisions. Western Digital has issued firmware updates to address these anomalies; verification of the latest firmware version via the manufacturer's dashboard is strongly recommended upon installation. As a DRAM-less drive, sustained write speeds can degrade significantly once the SLC cache is exhausted during large file transfers.

Key Specifications

• Interface: SATA III 6Gb/s
• Max Sequential Speeds: 560 MB/s Read, 520 MB/s Write
• Controller: SanDisk Proprietary (DRAM-less design)
• NAND Flash: Kioxia/WD BiCS5 TLC
• Endurance: High-density 4TB configuration (TBW varies by specific regional SKU)
• Form Factor: 2.5" / 7mm cased

Hardware Alternatives

• Samsung 870 EVO 4000GB: Unlike the SA510, the 870 EVO retains a DRAM cache, providing superior random I/O performance and sustained write consistency for heavy workloads.
• Crucial MX500 4000GB: A legacy competitor that utilizes a Silicon Motion controller with dedicated DRAM. It is structurally similar to the older WD Blue 3D rather than the SA510, making it a closer alternative for users seeking traditional buffered architecture.
• SanDisk Ultra 3D 4000GB (Revised): Later revisions of the SanDisk Ultra 3D often share the exact Bill of Materials and firmware architecture as the WD Blue SA510, effectively functioning as a hardware twin under a different label.
