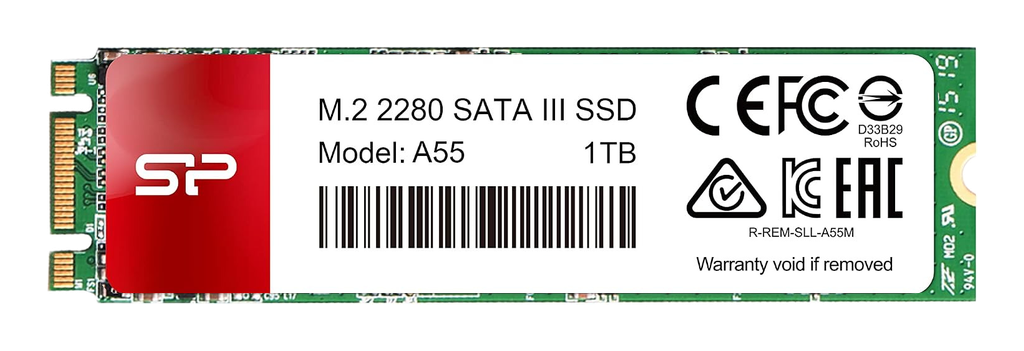

Silicon Power Ace A55 1000GB

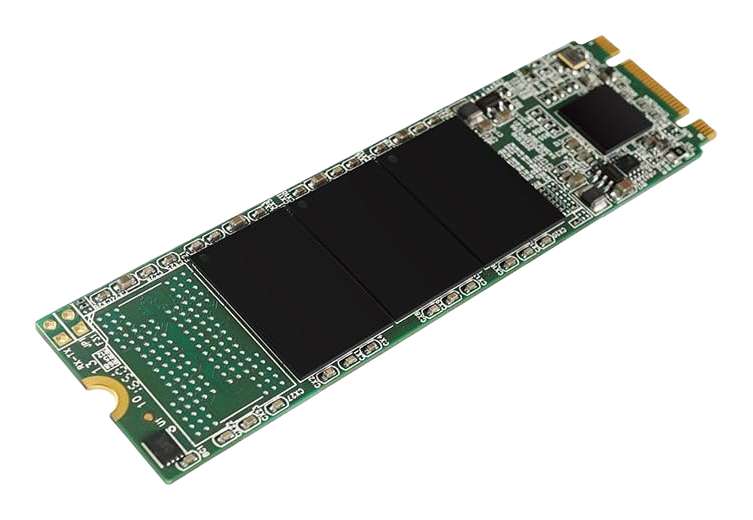

The Silicon Power Ace A55 (M.2 2280) operates as a legacy SATA III storage solution, typically utilizing a DRAM-less architecture designed for basic boot and storage applications. While specific internal components are subject to supply chain variation, the drive generally pairs a 2-channel or 4-channel entry-level controller—such as the Phison S11 or Silicon Motion SM2258XT—with 3D NAND flash. To compensate for the absence of dedicated DRAM buffering, the architecture relies heavily on a static or dynamic pseudo-SLC (pSLC) caching tier to saturate the SATA interface bandwidth during burst workloads. The Ace A55 is widely noted in hardware communities for its "variable Bill of Materials" (BOM) strategy. Silicon Power does not manufacture internal components, resulting in production batches that may feature different controllers (Phison, SMI, or Maxio) or NAND types (TLC vs. QLC) under the same SKU. Consequently, thermal characteristics and sustained write performance after the SLC cache is exhausted can vary noticeably between units.

Key Specifications

• Interface: SATA III 6Gb/s
• Form Factor: M.2 2280 (B+M Key)
• Max Sequential Read: 560 MB/s
• Max Sequential Write: 530 MB/s
• Controller: Variable (Commonly Phison S11 or SMI SM2258XT)
• DRAM Cache: No (DRAM-less)
• NAND Flash: 3D NAND (Typically TLC, subject to revision)
• Features: SLC Caching, ECC (Error Correction Code), S.M.A.R.T. monitoring, Bad Block Management

Hardware Alternatives

• TeamGroup MS30: A direct functional equivalent in the DRAM-less M.2 SATA segment. It frequently utilizes similar Phison S11 reference designs and exhibits comparable input/output operations per second (IOPS) limitations.
• Kingston A400 (M.2): Shares the Ace A55's market position and architectural reliance on Phison controllers (specifically the S11 in many revisions), offering a nearly identical performance profile in random read/write scenarios.
• Western Digital Green (SATA M.2): A primary competitor offering similar DRAM-less performance but distinguished by a fixed, proprietary hardware platform (SanDisk/WD), eliminating the component variance found in the Ace A55.
