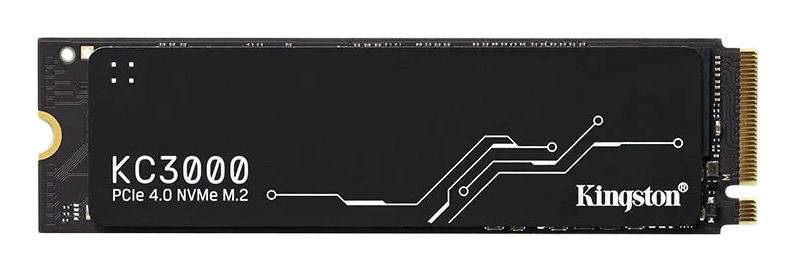

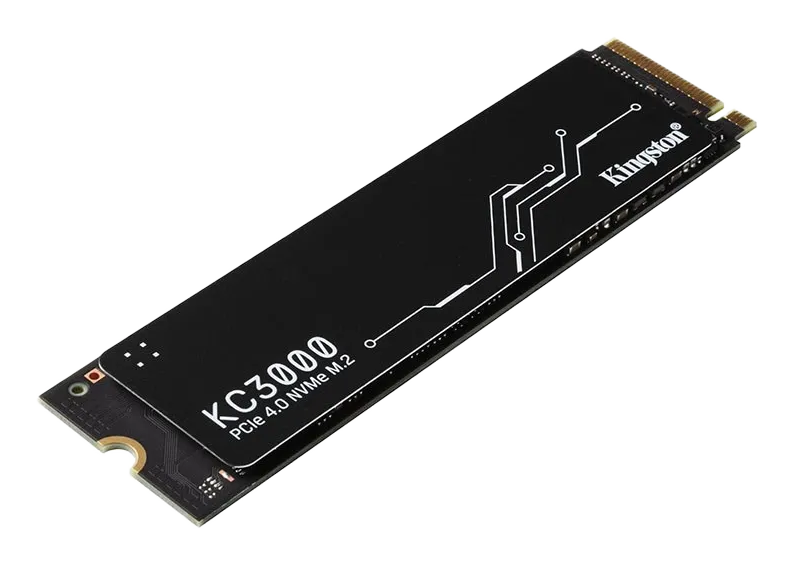

Kingston KC3000 512GB

The Kingston KC3000 is a high-performance PCIe 4.0 x4 NVMe drive built around the Phison PS5018-E18 controller and Micron 176-layer 3D TLC NAND (B47R). It uses dedicated DDR4 DRAM caching rather than Host Memory Buffer (HMB). The 512GB SKU achieves near-saturation on sequential reads, but write throughput is limited by the reduced die count of lower-capacity configurations. The drive uses a low-profile graphene-aluminum heat spreader instead of a rigid heatsink, so thermal management relies on system airflow and the E18 controller can throttle under sustained heavy write loads if ambient case temperatures are high.

Key Specifications

• Interface: PCIe 4.0 x4 (NVMe 1.4)
• Controller: Phison PS5018-E18 (8-channel, ARM Cortex-R5 architecture)
• NAND Flash: Micron 176-layer 3D TLC
• Sequential Read/Write: 7,000 MB/s / 3,900 MB/s
• Random 4K Read/Write: Up to 450,000 / 900,000 IOPS
• DRAM Cache: Yes (DDR4)
• Endurance: 400 TBW
• Physical Features: Low-profile Graphene Aluminum Heat Spreader; Single-sided PCB (512GB/1TB variants)

Hardware Alternatives

• Seagate FireCuda 530: Direct hardware clone utilizing the same E18 controller and Micron 176-layer NAND; differences mainly in firmware endurance tuning and pre-installed heatsink solutions.
• Corsair MP600 PRO XT: Direct hardware clone utilizing the same E18 controller and Micron 176-layer NAND; differences mainly in firmware endurance tuning and pre-installed heatsink solutions.
• Samsung 980 PRO: Primary proprietary competitor; the KC3000 can edge it out in sequential throughput due to newer NAND technology, while Samsung offers comparable random performance via a vertically integrated controller design.
• WD Black SN850: Primary proprietary competitor offering comparable random performance through a vertically integrated controller design.
