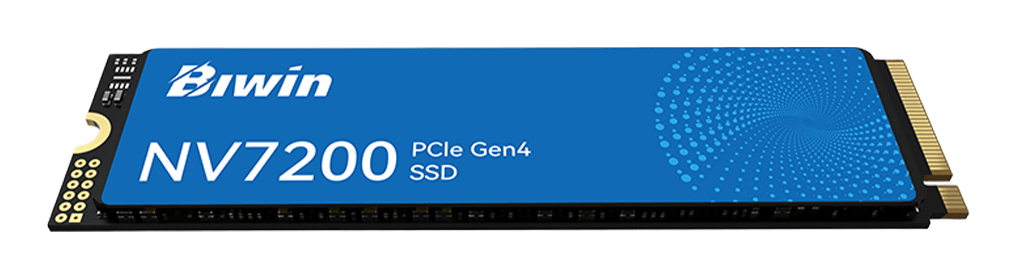

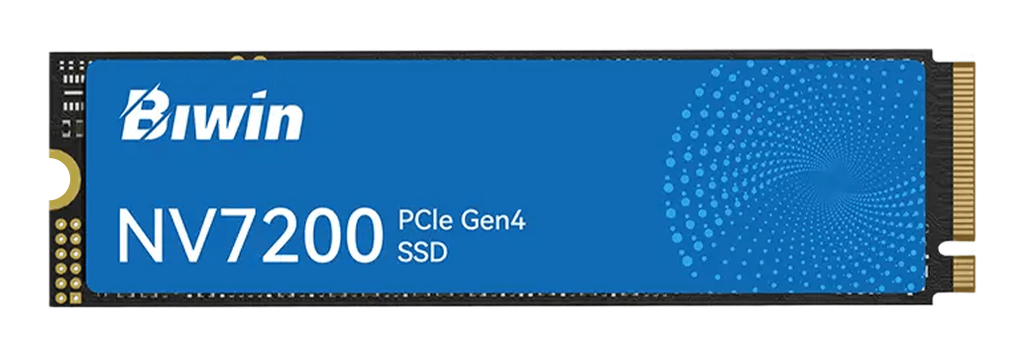

Biwin NV7200 2000GB

SSD Description

The Biwin NV7200 is a DRAM-less PCIe 4.0 NVMe drive built around the Maxio MAP1602 controller and paired with YMTC 232-layer 3D TLC NAND using Xtacking 3.0. It relies on Host Memory Buffer (HMB) instead of onboard DRAM, enabling high sequential throughput while reducing power consumption and thermal output. As an OEM product for several major brands, the NV7200 demonstrates manufacturing maturity and typically operates with only a thin graphene heat spreader, though the lack of DRAM can lead to slightly higher latency under heavy mixed random workloads compared to enthusiast-class DRAM-equipped drives.

Key Specifications

• Interface: PCIe 4.0 x4 / NVMe 2.0
• Controller: Maxio MAP1602A (4-channel, ARM Cortex-R5)
• NAND Flash: YMTC 232-Layer 3D TLC
• Sequential Read/Write: 7200 MB/s / 6200 MB/s
• Cache: DRAM-less (HMB Support)

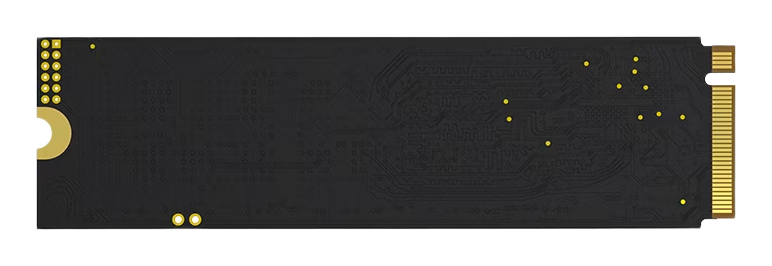

• Physical Layout: Single-sided PCB (M.2 2280)
• Endurance: Estimated 1200 TBW (Typical for 2TB capacity on this platform)

Hardware Alternatives

• Lexar NM790 2000GB: Shares an identical hardware foundation with the NV7200 (same Maxio MAP1602 + YMTC 232L reference design); performance variances are primarily firmware tuning.
• Western Digital WD_BLACK SN770 2000GB: A direct competitor among high-performance DRAM-less drives; the NV7200 targets higher sequential throughput via its newer NAND interface.
• Kingston KC3000 2000GB: Offers similar peak speeds but represents a DRAM-equipped architecture, favoring sustained random write consistency compared to the NV7200's emphasis on thermal efficiency.
