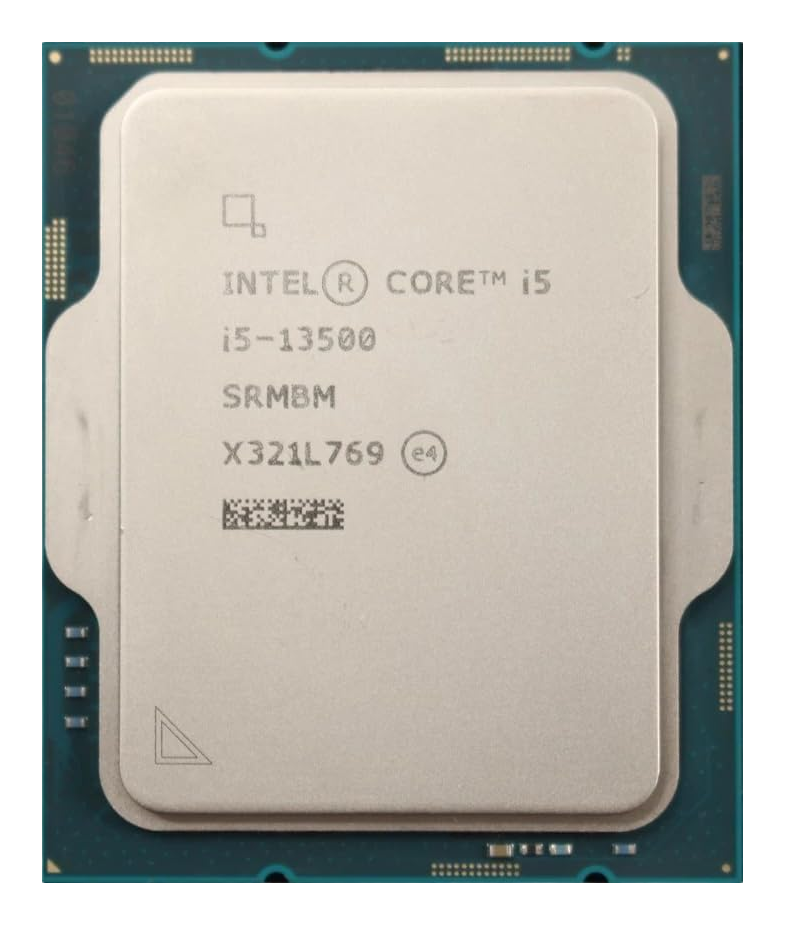

Intel Core i5-13500

CPU Description

Release & Generation

• Release date: January 2023
• CPU generation name: 13th Gen Raptor Lake
• Context: Unlike high-end 13th gen parts, this model uses a refined Alder Lake (C0) die, resulting in 1.25 MB L2 cache per Performance-core instead of the 2 MB found on the Intel Core i5-13600K.

Core Configuration & Speeds

• Performance-cores + Efficiency-cores = 6 Performance-cores + 8 Efficiency-cores = 14 cores / 20 threads
• Total cache: 24 MB Intel Smart Cache (L3) + 11.5 MB L2 Cache
• Max turbo/boost clock: Up to 4.8 GHz
• Base or rated power (TDP/base power): 65 W Base Power (TDP); 154 W Max Turbo Power

Memory Support

• Supported memory: Dual-channel DDR5-4800 and DDR4-3200

Socket

• Socket name: LGA 1700
• Compatibility: Compatible with Intel 600 and 700 series chipsets

Variants

• i5-13500: The standard model featuring integrated Intel UHD Graphics 770.
• i5-13500T: A power-optimized variant with a significantly lower 35 W base power target and reduced clock speeds for low-heat/compact builds.
